Flutter 容器控件–>Scaffold

Flutter 中的Scaffold实现了基本的 Material 布局。 只要是在 Material 中定义了的单个界面显示的布局控件元素,都可以使用 Scaffold 来绘制。

本文目录 ⌄

    Flutter 中的Scaffold实现了基本的 Material 布局。
    只要是在 Material 中定义了的单个界面显示的布局控件元素,都可以使用 Scaffold 来绘制。

    可以简单的将Scaffold理解为一个布局的容器。可以在这个容器中绘制我们的用户界面。

    自己写了一个简单UI

    TEXT
    import 'package:flutter/material.dart';

    void main() {
      runApp(
        MaterialApp( //这些是具名属性,使用匿名类
          debugShowCheckedModeBanner: false, //关闭debug显示
          home: Scaffold( //Scaffold是一个容器实现了基本的 Material 布局。
            appBar: AppBar( //appBar就是标题栏
              title: Text("Hello Rectangle"), //标题栏中的属性,文本内容
            ),
            body: HelloRectangle(),
          ),
        ),
      );
    }

    class HelloRectangle extends StatelessWidget {
      @override
      Widget build(BuildContext context) {
        return Center(
          child: Container(
              color: Colors.blueAccent,
              height: 400.0,
              width: 415.0,
              child: Center(
                child: Text(
                  'hello',
                  style: TextStyle(fontSize: 40.0),
                ),
              )),
        );
      }
    }


    appBar(重点)

    就是显示在页面顶部的文本

    源码示例:

    构造函数如下:

    TEXT
    AppBar({
      Key key,
      this.leading, //导航栏最左侧Widget,常见为抽屉菜单按钮或返回按钮。
      this.automaticallyImplyLeading = true, //如果leading为null,是否自动实现默认的leading按钮
      this.title,// 页面标题
      this.actions, // 导航栏右侧菜单
      this.bottom, // 导航栏底部菜单,通常为Tab按钮组
      this.elevation = 4.0, // 导航栏阴影
      this.centerTitle, //标题是否居中
      this.backgroundColor,
      ...
    })
    复制代码

    AppBar 和 SliverAppBar 都是 Material Design 中的 App Bar

    二者的区别在于 AppBar 的位置是固定在应用最上面的;而 SliverAppBar 是可以跟随内容滚动的。

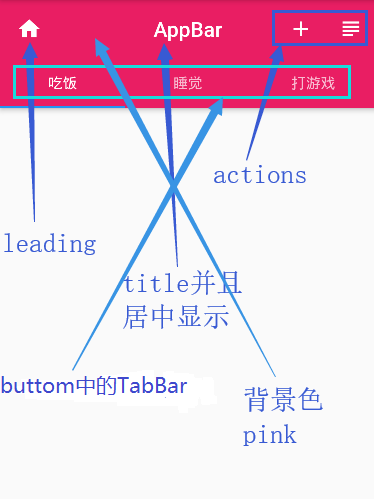

    主要属性:

    • leading:在标题前面显示的一个控件,在首页通常显示应用的 logo;在其他界面通常显示为返回按钮,如果给Scaffold添加了抽屉菜单,默认情况下Scaffold会自动将AppBar的leading设置为菜单按钮
    • title:当前页面的标题文字
    • actions:一个 Widget 列表,代表 AppBar 中所显示的菜单,对于常用的菜单,通常使用 IconButton 来表示;对于不常用的菜单通常使用 PopupMenuButton 来显示为三个点,点击后弹出二级菜单
    • bottom:一个 AppBarBottomWidget 对象,通常是 TabBar。用来在 AppBar 标题下面显示一个 Tab 导航栏
    • flexibleSpace:一个显示在 AppBar 下方的控件,高度和 AppBar 高度一样,可以实现一些特殊的效果,该属性通常在 SliverAppBar 中使用
    • backgroundColor:AppBar的颜色,默认值为ThemeData.primaryColor。改值通常和下面的三个属性一起使用
      • brightness:AppBar 的亮度,有白色和黑色两种主题,默认值为 ThemeData.primaryColorBrightness
      • iconTheme:App bar 上图标的颜色、透明度、和尺寸信息。默认值为 ThemeData.primaryIconTheme
      • textTheme: App bar 上的文字样式。默认值为 ThemeData.primaryTextTheme
    • centerTitle:标题是否居中显示,默认为false,居中显示为true
    TEXT
    class _CategoryPageState extends State<CategoryPage>
        with SingleTickerProviderStateMixin {

      TabController _tabController; //需要定义一个Controller
      List tabs = ["吃饭", "睡觉", "打游戏"];

      @override
      void initState() {
        // TODO: implement initState
        super.initState();
        // 创建Controller
        _tabController = TabController(length: tabs.length, vsync: this);
      }

      @override
      Widget build(BuildContext context) {
        return Scaffold(
          appBar: AppBar(
            leading: Icon(Icons.home),
            title: Text('AppBar'),	//标题
            backgroundColor: Colors.pink,	//背景色
            centerTitle: true, //标题居中显示
            bottom: TabBar(
              controller: _tabController,
              tabs: tabs
                  .map((item) => Tab(
                        text: item,
                      ))
                  .toList(),
            ),
            actions: <Widget>[
              IconButton(
                icon: Icon(Icons.add),
                onPressed: () {},
              ),
              IconButton(
                icon: Icon(Icons.subject),
                onPressed: () {},
              ),
            ],
          ),
        );
      }
    }


    上面通过TabBar我们只能生成一个静态的菜单,真正的Tab页还没有实现,当前你必须点击才可以切换。
    但是我们需要用手在上面左右滑动的时候,也可以切换,这个时候就要用到TabBarView组件,并且需要去监听Tab菜单的切换(在下面进行介绍)

    body

    页面要显示的主体内容,不做过多介绍(下面写代码示例的时候,写一下)

    floatingActionButton

    在body中定义的一个浮动按钮,默认在屏幕右下方

    代码示例:

    TEXT
    floatingActionButton: FloatingActionButton(
    	child: Icon(Icons.add),
    	onPressed: (){},
    ),
    复制代码

    运行效果:

    图片暂不可用:图片加载失败!

    floatingActionButtonLocation

    可以改变上面的浮动按钮的位置

    如:

    TEXT
    floatingActionButtonLocation:FloatingActionButtonLocation.centerFloat,
    复制代码

    可以让按钮在页面底部的中间位置显示 ,下面要实现一种按钮的打洞效果,会用到这个属性

    persistentFooterButtons

    固定在下方显示的按钮

    代码示例:

    只贴增加的代码(在Scaffold组件下,与appBar、body平级)

    TEXT
    floatingActionButtonLocation: FloatingActionButtonLocation.endTop,
    persistentFooterButtons: <Widget>[
    	RaisedButton(
    	  child: Text("我",style: TextStyle(color: Colors.white),),
    	  onPressed: () {},
    	),
    	RaisedButton(
    	  child: Text("你",style: TextStyle(color: Colors.white),),
    	  onPressed: () {},
    	),
    	RaisedButton(
    	  child: Text("他",style: TextStyle(color: Colors.white),),
    	  onPressed: () {},
    	)
    ],
    复制代码

    运行效果:

    图片暂不可用:图片加载失败!

    bottomNavigationBar(重点)

    显示在页面底部的导航栏

    代码示例:

    TEXT
    bottomNavigationBar: BottomNavigationBar(
    	items: <BottomNavigationBarItem>[
    	  //items长度必须大于等于2
    	  BottomNavigationBarItem(icon: Icon(Icons.home), title: Text('首页')),
    	  BottomNavigationBarItem(icon: Icon(Icons.category), title: Text('分类')),
    	  BottomNavigationBarItem(icon: Icon(Icons.people), title: Text('我的')),
    	],
    ),
    复制代码

    运行效果:

    图片暂不可用:图片加载失败!

    那么如果我们想要实现这种样式的怎么办呢?

    图片暂不可用:图片加载失败!

    也非常简单,Material组件库中提供了一个BottomAppBar组件,它可以和FloatingActionButton配合实现这种“打洞”效果,

    代码:

    TEXT
    floatingActionButtonLocation: FloatingActionButtonLocation.centerDocked,
    bottomNavigationBar: BottomAppBar(
        color: Colors.white,
        shape: CircularNotchedRectangle(), // 底部导航栏打一个圆形的洞,也可以自定义外形
        child: Row(
          children: [
        	IconButton(icon: Icon(Icons.home)),
        	SizedBox(), //中间位置空出
        	IconButton(icon: Icon(Icons.business)),
          ],
          mainAxisAlignment: MainAxisAlignment.spaceAround, //均分底部导航栏横向空间
        ),
    ),
    复制代码

    注:一定要把FloatingActionButtonLocation的值设置为centerDocked才可以

    drawer、endDrawer(重点)

    Scaffold的drawer和endDrawer属性可以分别接受一个Widget来作为页面的左、右抽屉菜单。

    下面举一个从左边拉出来的菜单的例子:

    代码示例:

    TEXT
    drawer: Drawer(
        child: MediaQuery.removePadding(
          context: context,
          //移除抽屉菜单顶部默认留白
          removeTop: true,
          child: Column(
        	crossAxisAlignment: CrossAxisAlignment.start,
        	children: <Widget>[
        	  Padding(
        		padding: const EdgeInsets.only(top: 38.0),
        		child: Row(
        		  children: <Widget>[
        			Padding(
        			  padding: const EdgeInsets.symmetric(horizontal: 16.0),
        			  child: ClipOval(
        				child: Image.asset(
        				  "images/Test.jpg",
        				  width: 80,
        				),
        			  ),
        			),
        			Text(
        			  "夜夕i",
        			  style: TextStyle(fontWeight: FontWeight.bold),
        			)
        		  ],
        		),
        	  ),
        	  Expanded(
        		child: ListView(
        		  children: <Widget>[
        			ListTile(
        			  leading: const Icon(Icons.card_travel),
        			  title: const Text('账号管理'),
        			),
        			ListTile(
        			  leading: const Icon(Icons.settings),
        			  title: const Text('设置'),
        			),
        		  ],
        		),
        	  ),
        	],
          ),
        ),
    ),
    复制代码

    默认屏幕上什么都没有,当你用手在屏幕上面从屏幕左边往右边滑的时候,就会显示出来

    效果展示:

    图片暂不可用:图片加载失败!

    backgroundColor

    设置body的背景颜色,没什么好说的

    TabBarView(重点)

    在上面已经说了,appBar中的bottom中的TabBar只能生成一个静态的菜单,真正的Tab页还没有实现,你必须点击才可以切换。

    那么如何实现在屏幕上滑动,并且和下面body中的内容实现同步呢?
    这个时候就用到了TabView

    代码示例:

    TEXT
    class _CategoryPageState extends State<CategoryPage>
        with SingleTickerProviderStateMixin {
      TabController _tabController; //需要定义一个Controller
      List tabs = ["吃饭", "睡觉", "打游戏"];

      @override
      void initState() {
        // TODO: implement initState
        super.initState();
        // 创建Controller
        _tabController = TabController(length: tabs.length, vsync: this);
      }

      @override
      Widget build(BuildContext context) {
        return Scaffold(
          appBar: AppBar(
            title: Text('AppBar'),
            centerTitle: true, //标题居中显示
            bottom: TabBar(
              controller: _tabController,
              tabs: tabs
                  .map((item) => Tab(
                        text: item,
                      ))
                  .toList(),
            ),
          ),
          body: TabBarView(
            controller: _tabController,
            children: tabs.map((e) {
              //创建3个Tab页
              return Container(
                alignment: Alignment.center,
                child: Text(e, textScaleFactor: 5),
              );
            }).toList(),
          ),
        );
      }
    }
    复制代码

    这个时候,无论你是点击上面的吃饭、睡觉、打游戏的按钮,或者用手在屏幕上面左右滑动,都可以实现页面和数据同步

    运行效果:

    图片暂不可用:图片加载失败!

    resizeToAvoidBottomPadding(重点)

    控制界面内容 body,是否重新布局来避免底部被覆盖了,
    比如当键盘显示的时候,重新布局避免被键盘盖住内容。默认值为 true。

    作者:YXi
    链接:https://juejin.im/post/5d91c6a051882573151b3f0d
    来源:掘金
